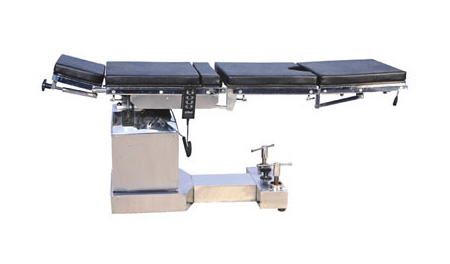

Description :
Modern design Electric operation Table Radio Translucent Top for use of C-Arm Image Intensifier such as general surgery and certain special surgical procedure etc.

Central position table column and inter changeable head & leg section for maximum use of C-Arm Image Intensifier.

Smooth and accurate positioning by Remote Control for Hi-Lo, Trendlenbueg / Reverse trendlenburg, Lateral Tilt & Head side Raising/Lowering.

Base and column are covered with stainless steel sheet.

Standard Accessories
Rubber mattress set
Anaesthetist screen
Padded shoulder support Wrist strap
Arm rest
Padded lateral support
Padded lithotomy Crutches

Optional Accessories
Universal Orthopedic attachment
S.S. Instrument tray with hanger
S.S. Urology tray
Neuro Surgery attachment
Arm Surgery attachment

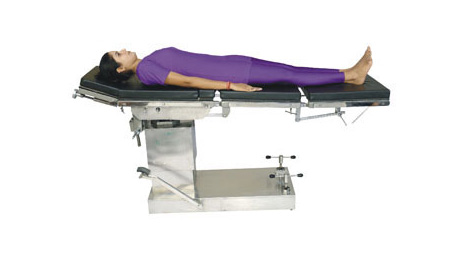

OT Table C-ARM (Code : 286)

Hydraulically operated table, five sections, radio-translucent table top with eccentric pillars. Full length C-Arm compatible, having all surgical positions i.e. raising/lowering, trendelenburg, reverse trendelenburg, lateral tilt, flex/re-flex & chair position. Interchangeable head and leg sections, In Built Kidney Bridge. All positions operated through cranks fitted under the head end of the table. Supplied complete with standard accessories.

SALIENT FEATURES :
- Encentric Pillars
- Stainless Fitting
- Detachable, head, leg & Pelvic section
- In Built kidney bridge
- Five Section Radio - Translucent.
- Base & Cover made of attractive east to clean Stainless Steel.
- Sophisticated mechanics provide smooth, step less articulation of the table Top for precise patient positioning.


STANDARD ACCESSORIES
- Anesthetic Screen
- Shoulder supports with pad
- Arm Boards with pads
- Lateral support with pad
- Knee Crutches Goepel type
- Water Proof rubber mattress

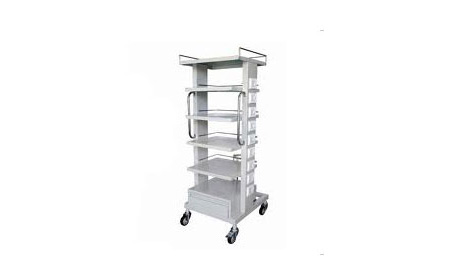

LAPROSCOPY TROLLEY (Code : 255)

5 Section Top made of perforated CRCA MS sheet.
Back Rest Section, maneuvered by Screw Handle from Foot End
Tubular Head & Foot Bows of unequal height.
Overall Size: 1450mm x 540mm x 500mm.
Finish: Epoxy Powder Coated

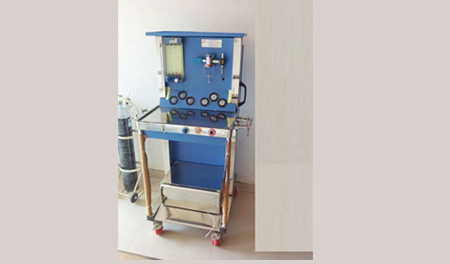

ANESTHESIA MACHINE MAJOR IN M.S FRAME & S.S FRAME (Code : )

Two Gases Rota meter Oxygen & Nitrous-Oxide
Oxygen Flometer range 100 cc/min. to 10 liters/min., Nitrous Oxide Flometer range 200cc /min. to 12 liters/min.
Standard Fresh Gas Outlet.
Change Over System Open Circuit to Close Circuit.
Emergency Flush Valve at front Panel connected to incoming O2 supply
Goldman type Halothane Vaporizer.
Parking space for two additional Vaporizers.
Non-return cum Pressure Relief Valve minimize risk of back flow of gases.
Blows off valve when pressure exceeds 200cm of water column fitted.
Provision to fit Ventilator.
Provision to fit Carbon Dioxide Absorber.
Extended platform at rear for two 'B' type cylinder.
Table top made of Stainless Steel.
Top Tray provided at eye level for keeping Monitoring Equipments.
Maggill's or Bains circuit.
One spacious Drawer on smooth runner.
Four Castor Trolley with front two lockable Wheels.
Pin Index Yokes two for Oxygen and two for Nitrous oxide
High-efficiency Regulators for reliability two each for O2 & N2O.

Scrub Station (Code : 910)

Description:

• Scrub Station Wall mounted Scrub Stations, made of heavy-duty Stainless Steel 304 grade designed for splash - free usage without touching the taps or soap dispensers directly with the handle.
• The Station are available in the following options:-
